Diagonal Division on the Side
To create a lighter and more dynamic appearance, a diagonal division has been applied
to the instrument.
Medical Diagnostic Instrument EXC 200
TASK
Design of a fully-automated desktop chemistry analyzer for small healthcare sites.
Application of the recognizable zybio product language
Design of the instrument with corporate characteristics
Awards Received
The EXC 200 medical diagnostic instrument won the Red Dot and IF Design Awards in 2022.
SERVICES
-
Ergonomic consideration
-
Derivation from design guidelines
-
Product design
-
Product graphics
-
Colour concept (CMF)
-
Continuous supervision of the implementation
Design Language
Layering is a typical design feature of the zybio product portofolio.
Unique Design

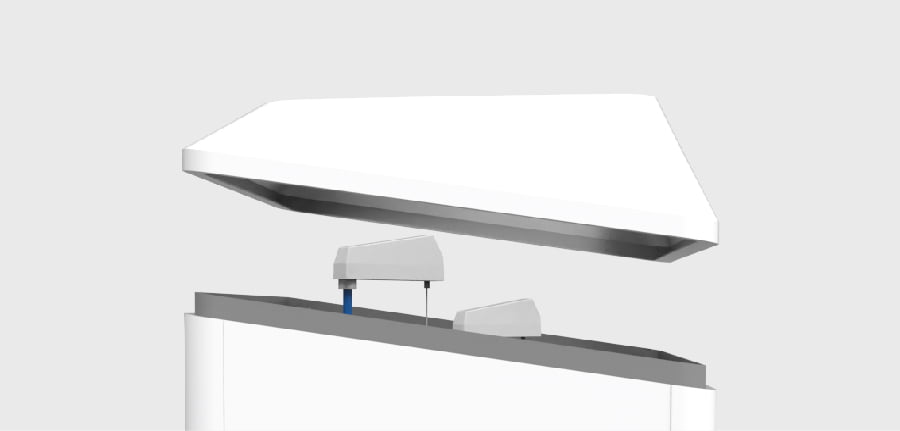

The unique shape of the top cover makes it more torsionally rigid and reliable,
ensuring the durability and safety of the instrument.
The handle integrated into the grey layer makes the
instrument appear more concise and dexterous.
Meanwhile, it saves additional components and reduces costs in terms of
to molds, production, manufacturing, and assembly.
Explore the Best Design Expressions
Screen with a double-layered metal frame for both -
aesthetic appeal and optimal ergonomic angle.
Bent metal sheet behind the screen
frame for support
The dark screen frame enhances the visual
perception, making the screen appear wider
Screen unit combines multiple functions:
USB port on the side and the front indicator
light at the top of the display
This design not only incorporates additional functions into the screen but also gives it a visually slimmer
and lighter appearance. An innovative approach unique to the medical field.
For the metal frame design, yimumu provides recommendations on material, structure, and processes,
enhancing the product's overall stability while also streamlining production and assembly.
Design Detail
yimumu closely communicates with customers and jointly explore the best way to divide
the operation tabletop to reduce costs in production, manufacturing, assemblz, etc.
Design Detail

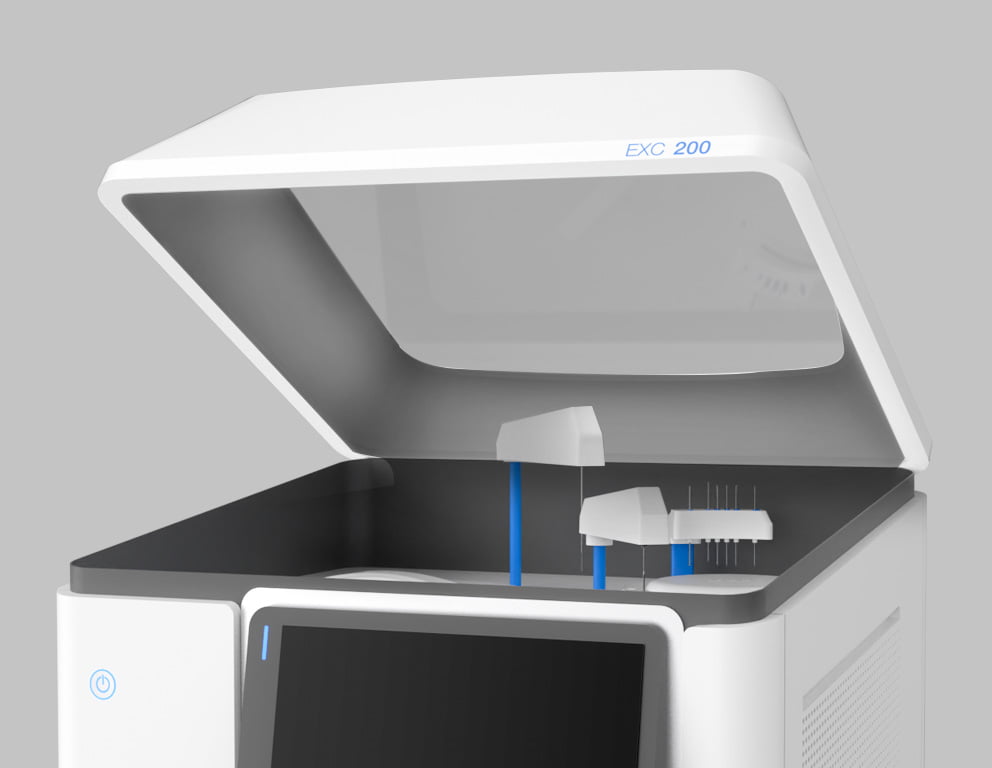

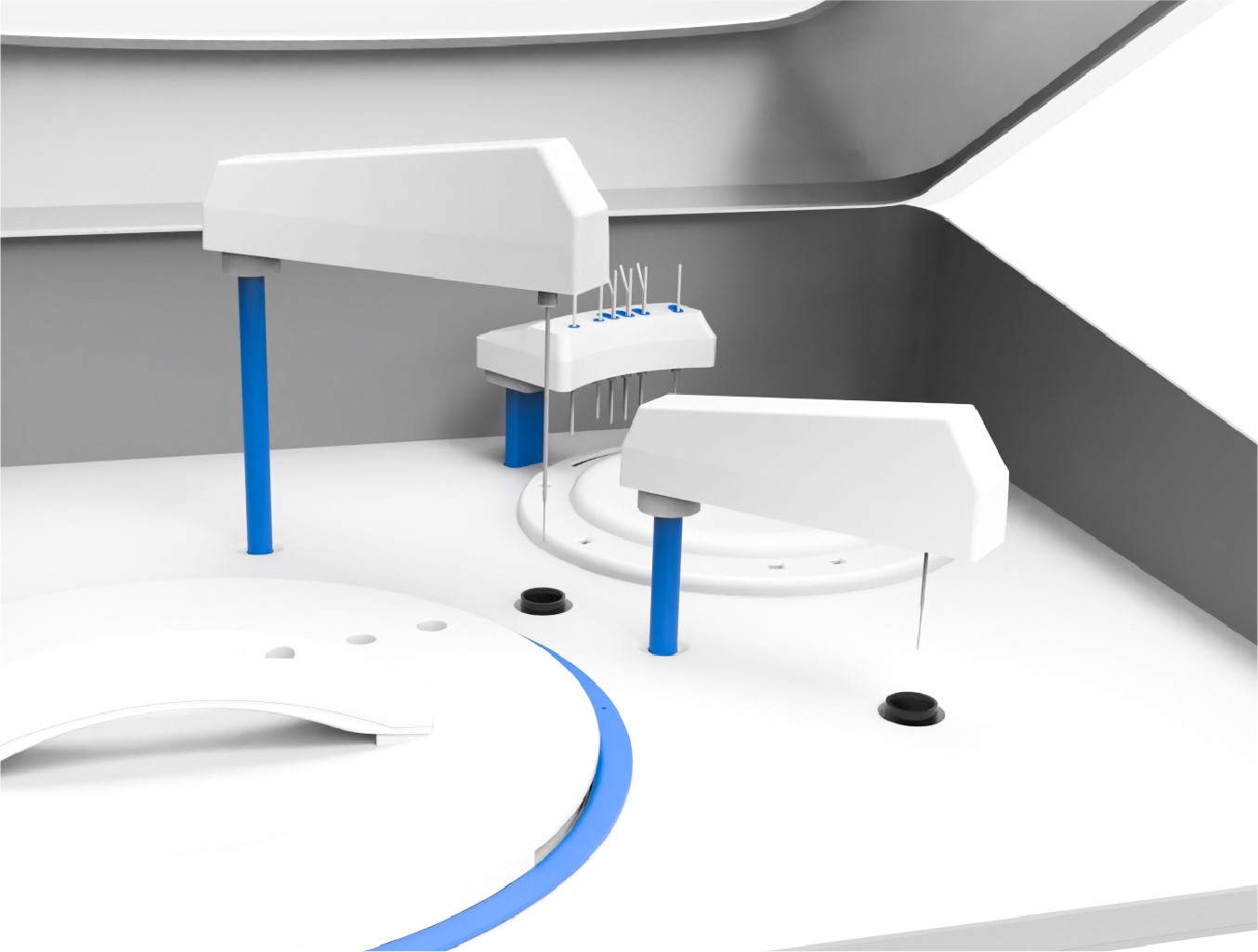

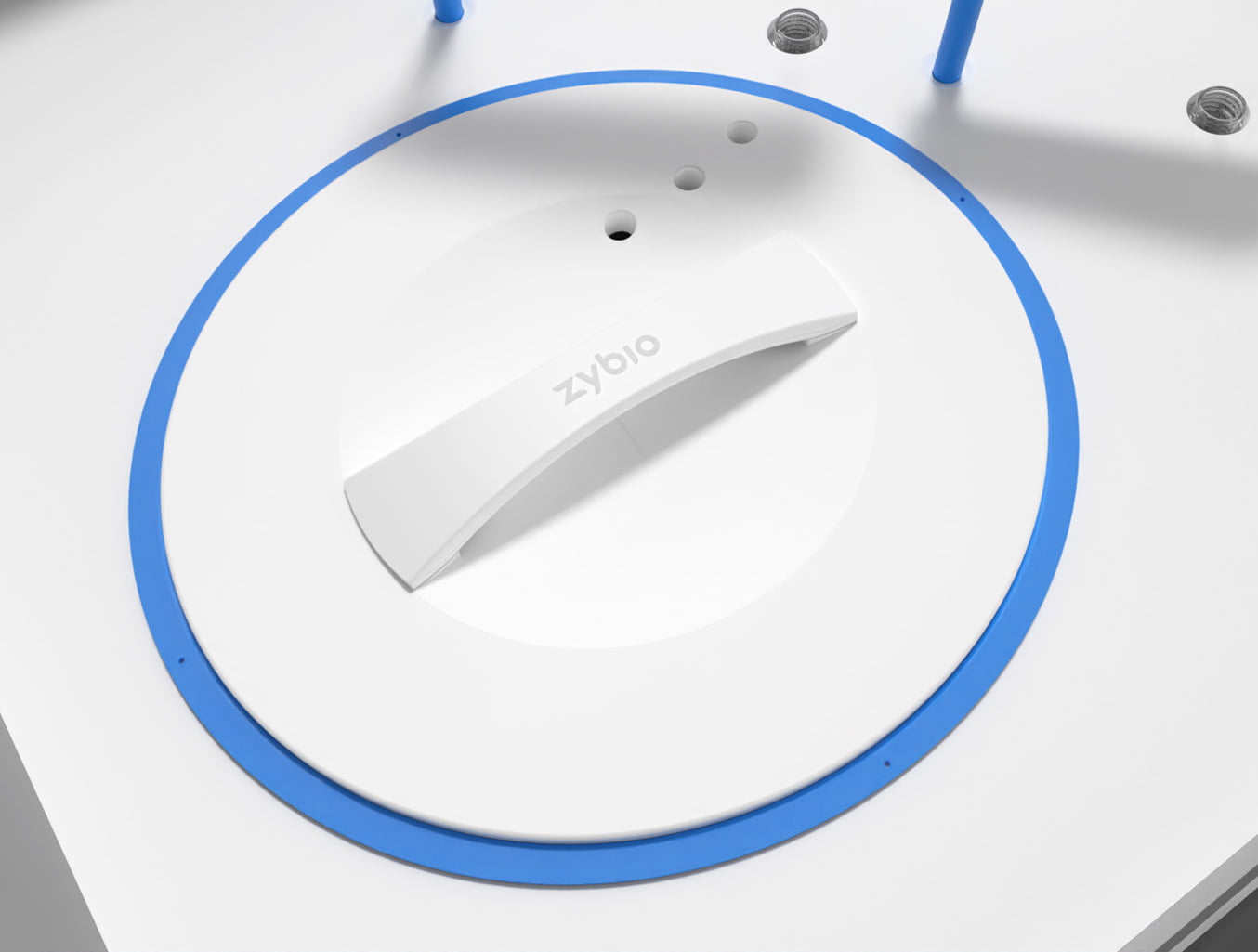

The blue edge under the reagent tray lid is both eye-catching and intuitive,
helping users to quickly locate it.
The unique groove-socket is convenient and easy to use, making the operation
smooth and effortless.
Design Detail
The design of the white cap on the top of the probe is
the consistent design language of zybio.
The form of the white cap on top of the probe is consistent
with design language of zybio.
Design Detail
yimumu explored various types of handle design for the lid.
They were evaluated using 3D-printer to ensure the best possible user experience
The logo on the lid handle effectively enhances brand recall
without increasing manufacturing costs.
Design Language

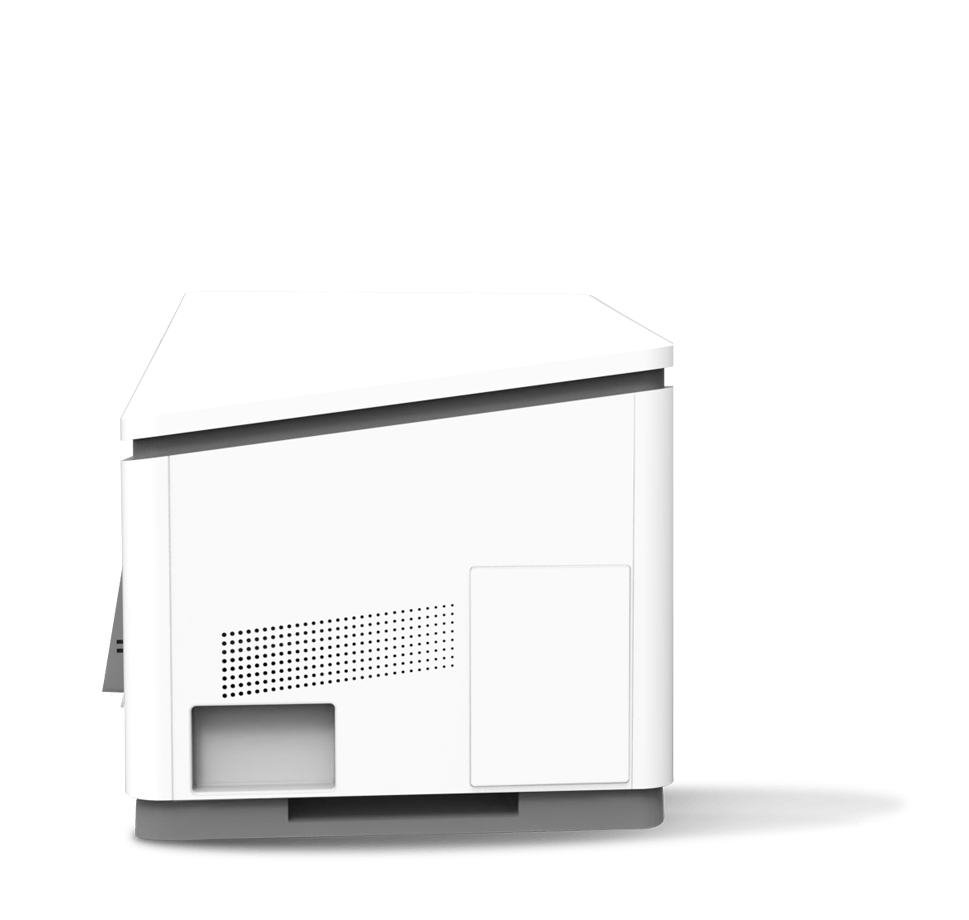

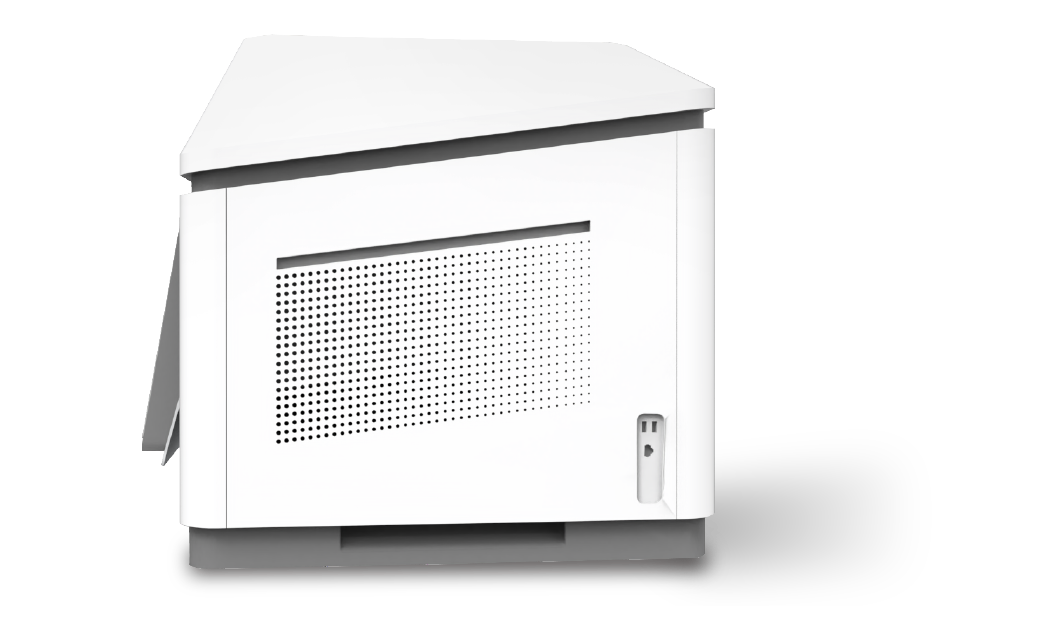

The ventilation holes are arranged closely along the shoulder
line of the instrument, making it more visually dynamic.
The area of the circular dots meets the actual
heat-dissipation requirements of the instrument.
The ventilation holes feature a pattern of dots that gradually
change from large to small,
continuing zybio's consistent design language.
The diagonal slots parallel to the ventilation holes are located at the top,
facilitating the replacement of the filter.
Better User Experience Through Design
The recessed handle design improves usability, allowing users
to carry the instrument more easily.
Implementation
During the accompanying phase of the customer's manufacturing process, yimumu promptly provided professional advice and
optimized the
design multiple times based on the current production status, to ensure that the best results are ultimately achieved.
