Instrument for Pre-Sample Processing EXM 100C

TASK

Design for a pre-sample processing instrument with a compact footprint, suitable for a wide range of scenarios from small to large establishments.

Application of the recognizable zybio product language
Design of the instrument with corporate characteristics

SERVICES

Ergonomic consideration
Application of design guidelines
Product design
Product graphics
Colour concept (CMF)
Continuous supervision of the implementation

Against the backdrop of the rapid outbreak of the pandemic, the design
requirements for sample lid-opening and closing instruments emerged.

It only took two weeks from industrial design to mass production. The highly effective
design process helped the instrument quickly enter the market, promptly meeting the
urgent needs brought about by the pressure of the pandemic.

Ultra-Short Design
Implementation Cycle

Through in-depth research on user's operation processes,
yimumu designed multiple solutions, comprehensively
considering and meeting the diverse needs of customers.

"Can be pushed to the table edge (occupies a small floor area)
allowing for the most unrestricted operation without any obstacles."

Fast and Efficient Operation
Through Design

The instrument is designed with four components, which greatly
facilitates the assembly of the whole machine .

The groove enables a smooth demolding of the injection
molding part.

Optimization of the User Experience

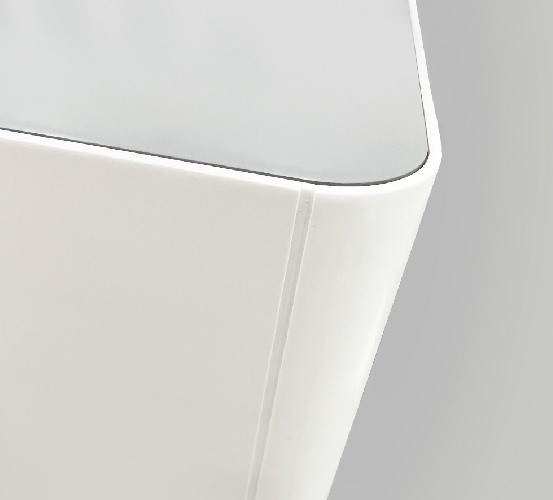

The unique sloped-arc design not only echos the
zybio‘s design language but also ensures visibility
and the ease of single-handed operation

The grey background helps the user to focus on the operation
while also giving the machine a sophisticated look.

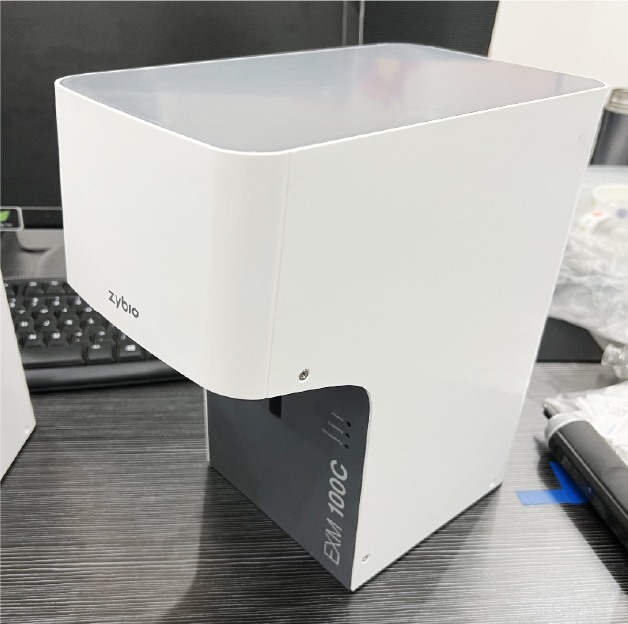

The arc-shaped cutout of the instrument cleverly matches the angle of the metal
components of the lid.

Clever Solution for
Efficient Production and
Better Stability

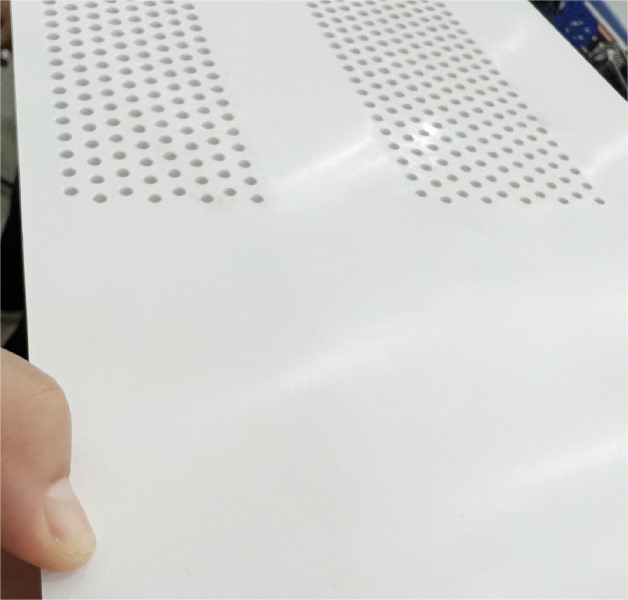

The tray design significantly improves the instrument's stability. Produced by aluminum-tin plating process, this component meets production and assembly requirements efficiently. It not only enhances assembly speed but also effectively stabilizes the instrument's weight balance at the bottom.

Different Tray Solution Options

grasped

capping

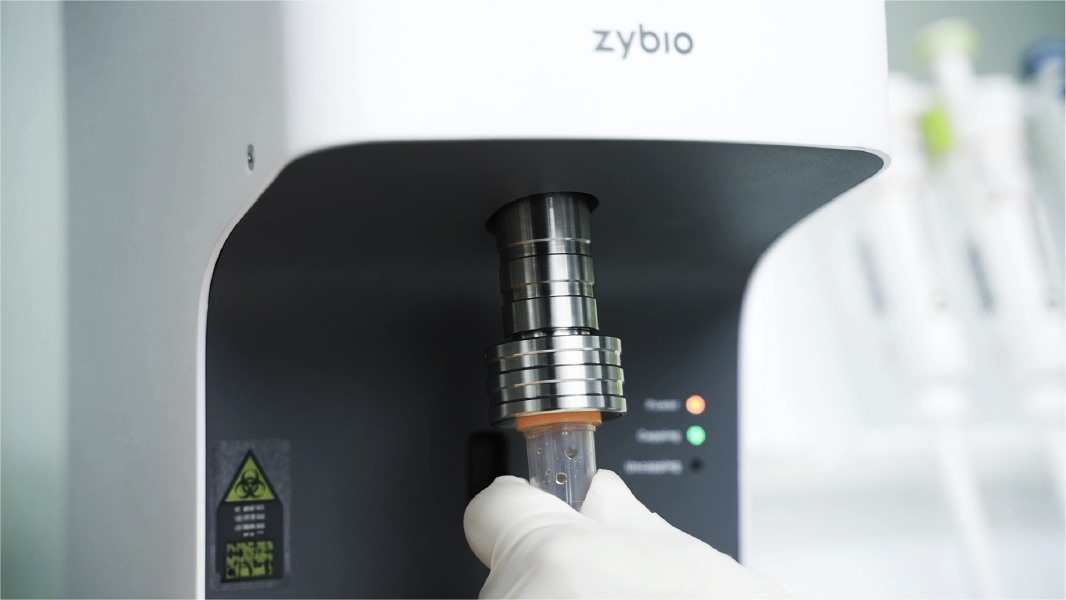

Uncapping

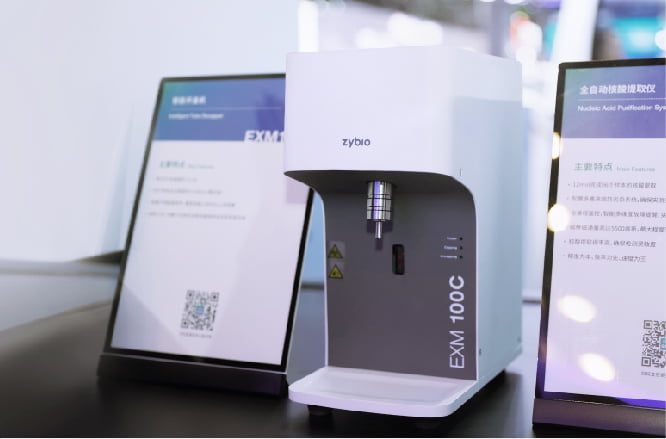

By aligning the model name and the status light indication, the grey
surface appears generous and streamlined, accentuating the machine's
overall minimalist appeal.

Support and Optimization
until Completion

Throughout the manufacturing process, yimumu continuously provided the customer with
professional advice based on the current production status and optimized the design on
multiple occasions to ensure that the best possible outcome could ultimately be achieved.
