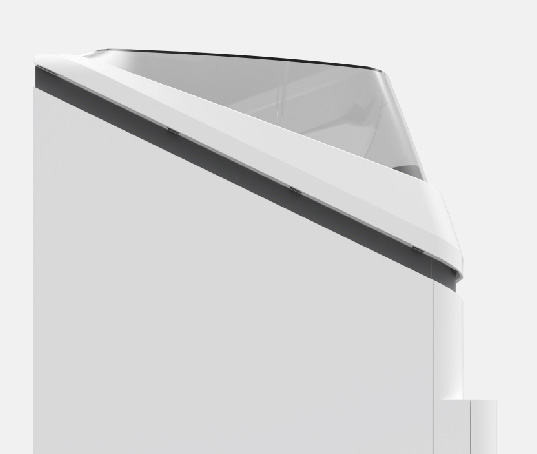

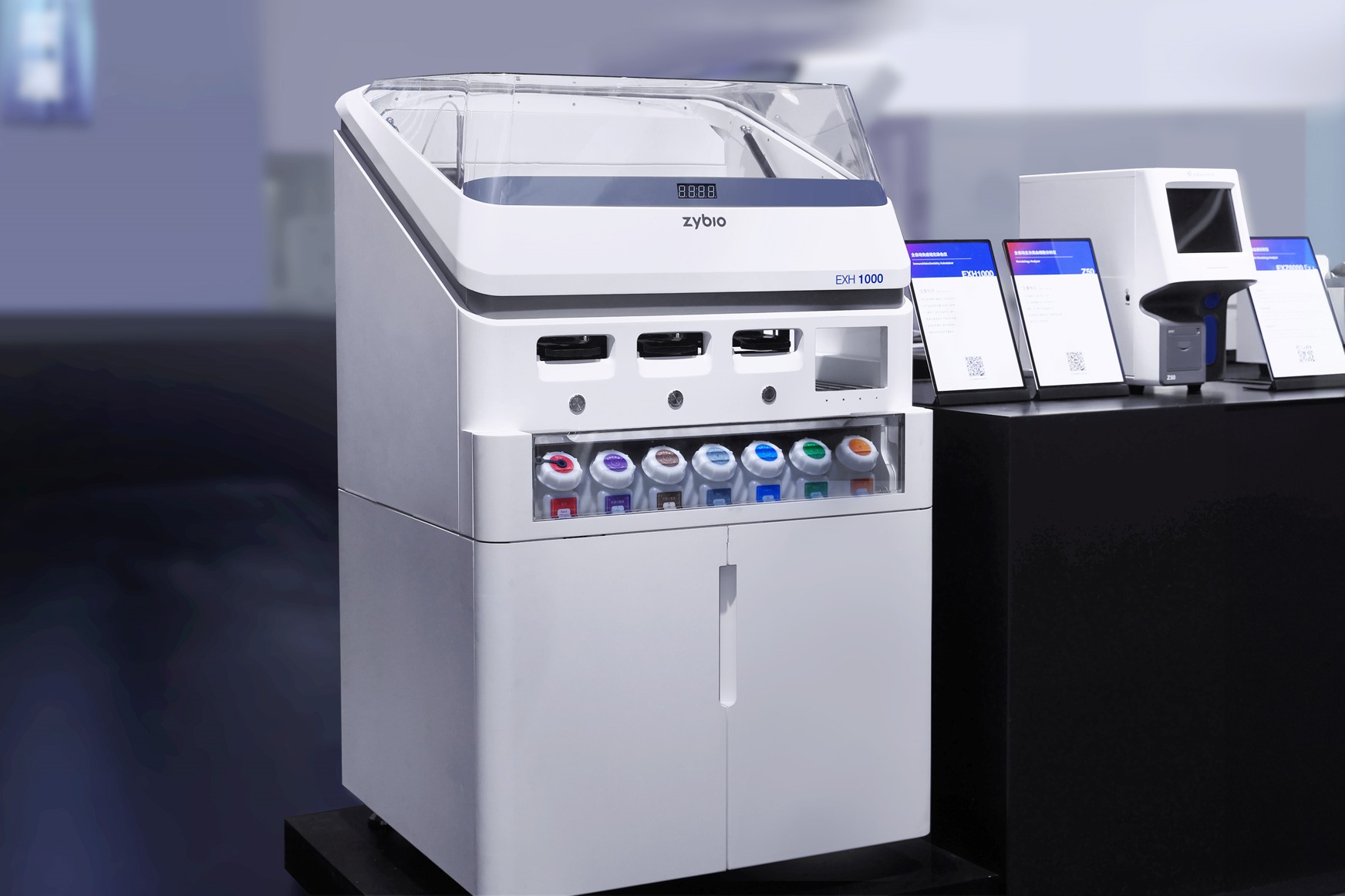

The clever use of diagonal segmentation reduces
the heaviness and bulkiness of the instrument.

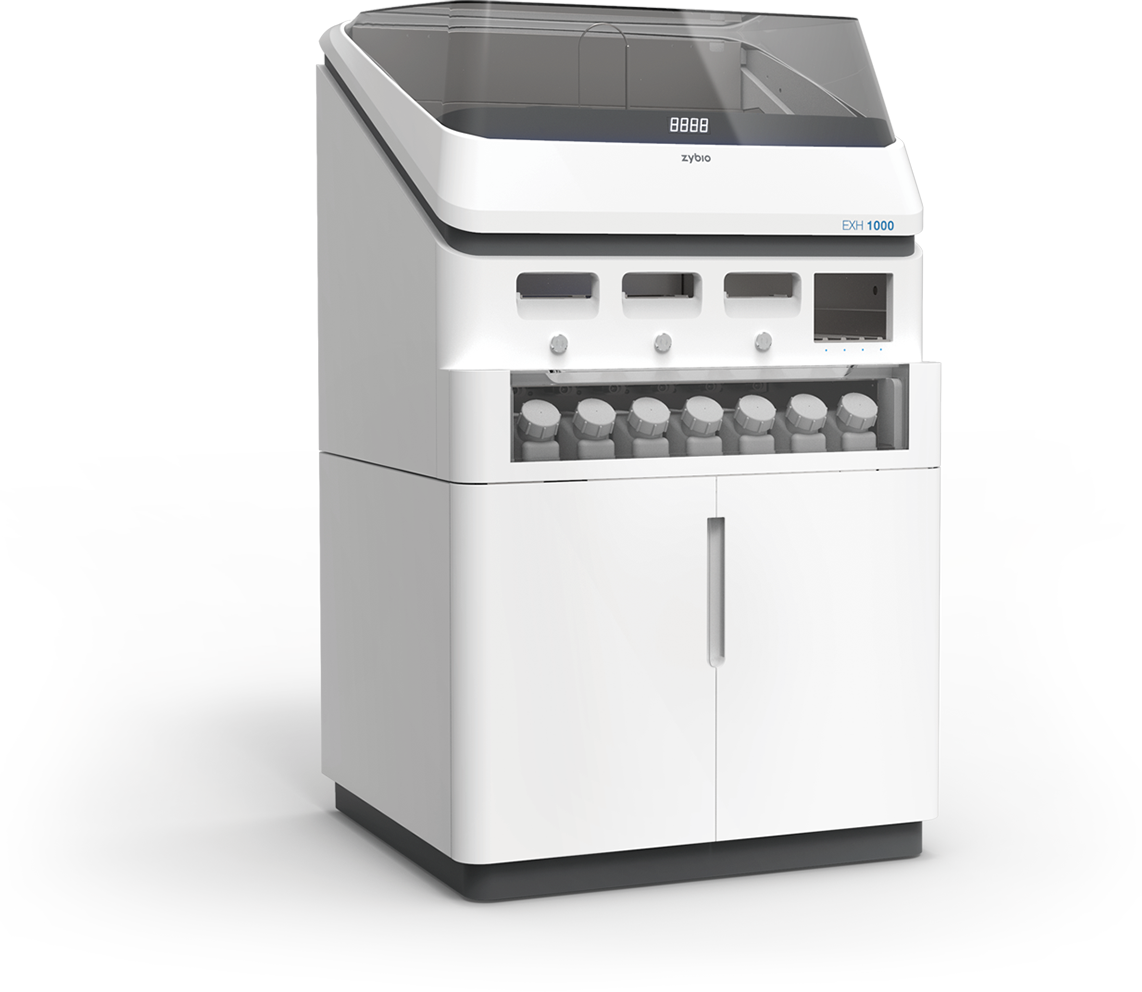

Medical Diagnostic Device EXH 1000
TASK
Designing the look of a fully automated immunohistochemistry instrument that offers users more accurate, efficient, and convenient tumor testing services, streamlining clinical workflows.
Transfer of the recognizable zybio product language
Finding variability within the corporate characteristics while maintaining coherence
SERVICES
-
Ergonomic consideration
-
Application of design guidelines
-
Product design
-
Product graphics
-
Colours, material, finishes concept (CMF)
-
Continuous supervision of the implementation

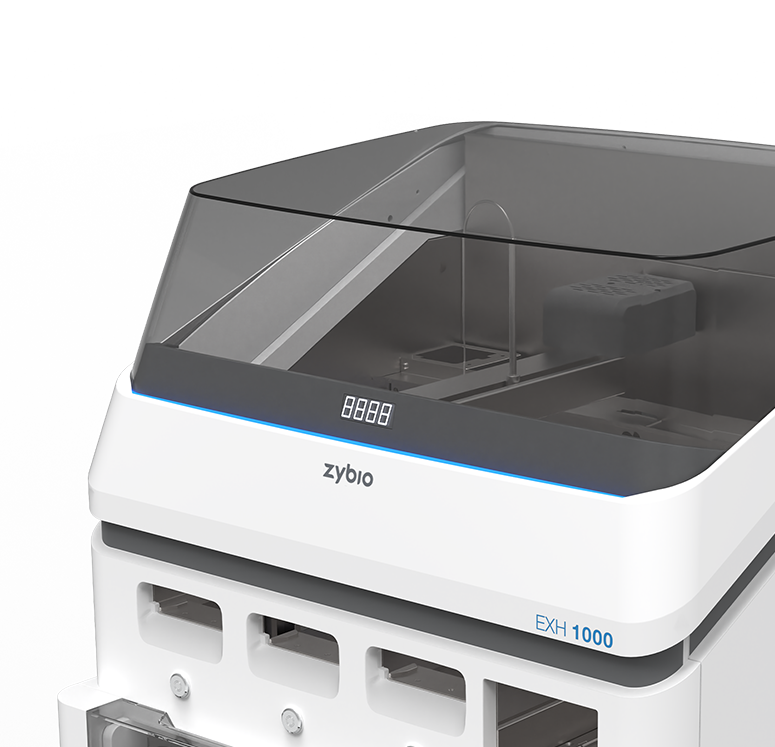

Digital Display
The grey band highlights the digital display
The user can see the operational progress
from afar thanks to the status bar.
Malfunction
In operation
Warning

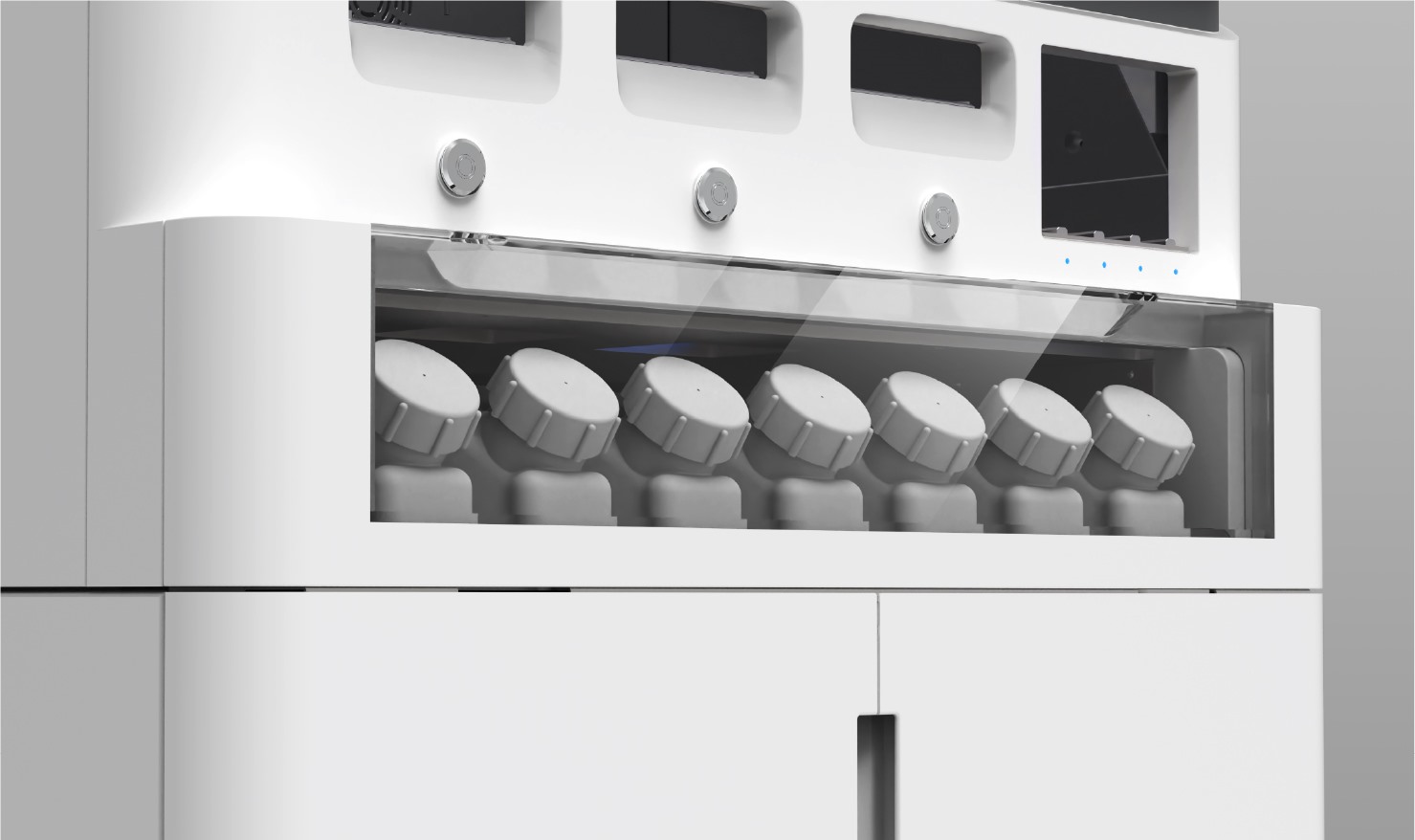

Observation Window
The L-shaped transparent window enables the
operator to easily maintain an overview of the
reagents from above while standing.

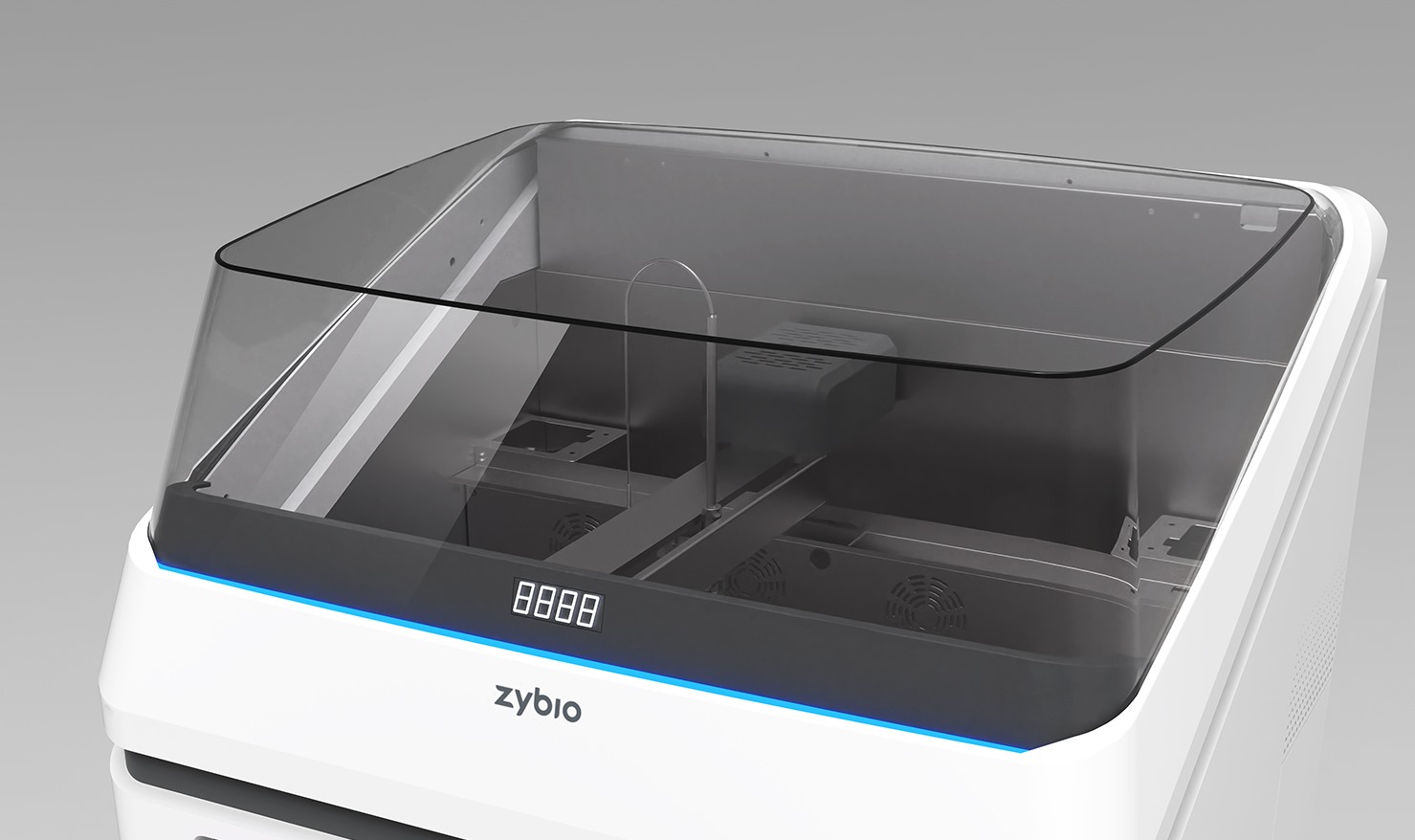

The transparent cover allows the user to easily
observe the control instruments.
The housing doors feature fully integrated handles to prevent user injury during
the bustle of a busy laboratory, while maintaining a smooth appearance.
The gray strip on the lid intuitively guides users to the optimal gripping point.
Design Language

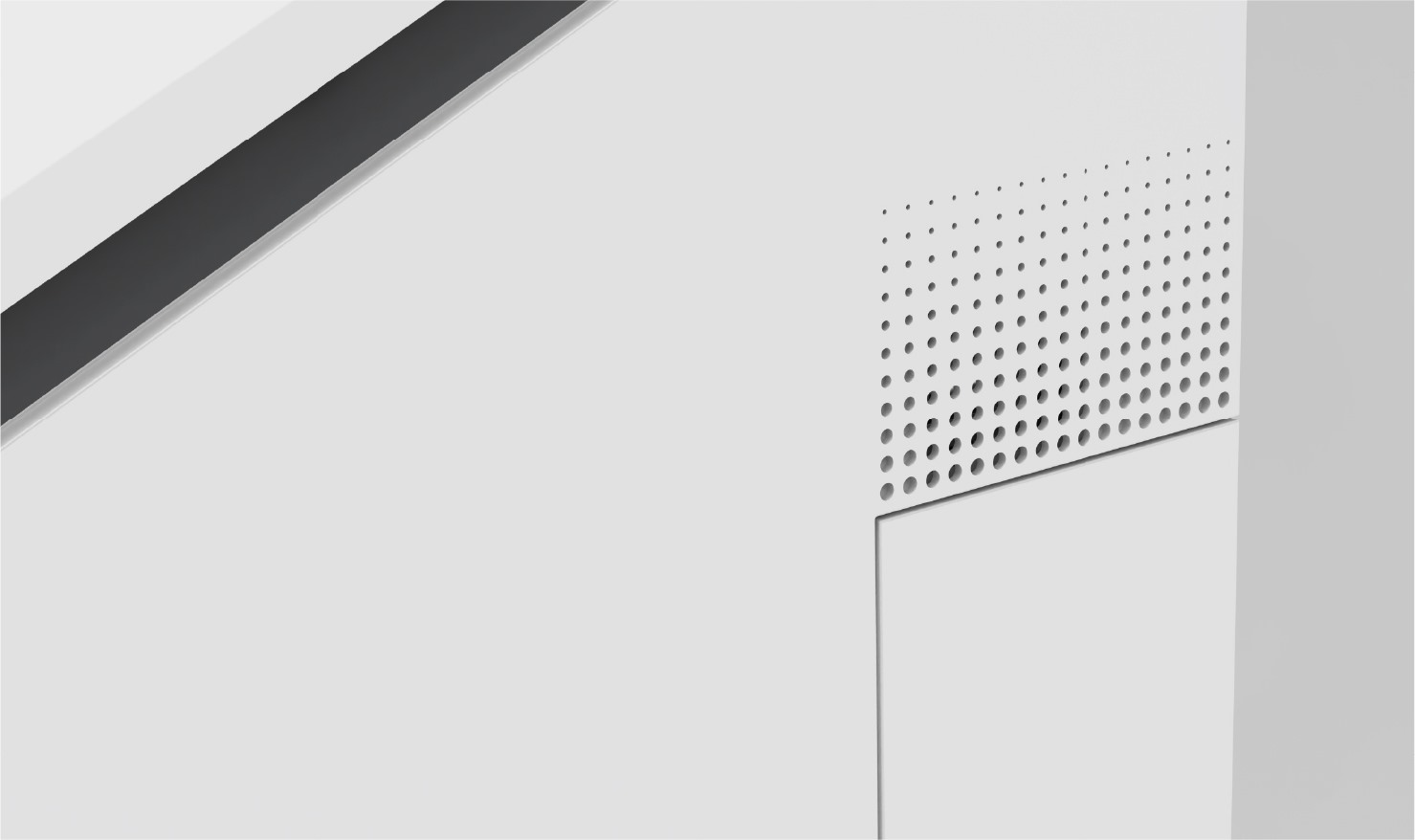

The size of the ventilation holes on the back panel
gradually decreases from bottom to top - a typical
zybio design feature.
