Medical Analytical Instruments URINALYSIS Series

TASK

The design of the fully automated urinalysis complete solution provides users with strong data support and facilitates further processing of clinical urine test results.

Transfer of the recognizable zybio product language
Design of the instrument with corporate characteristics

SERVICES

Ergonomic considerations
Application of the design guidelines
Product design
Product graphic
Colours, material, finishes concept (CMF)
Continuous supervision of the implementation

Product Family

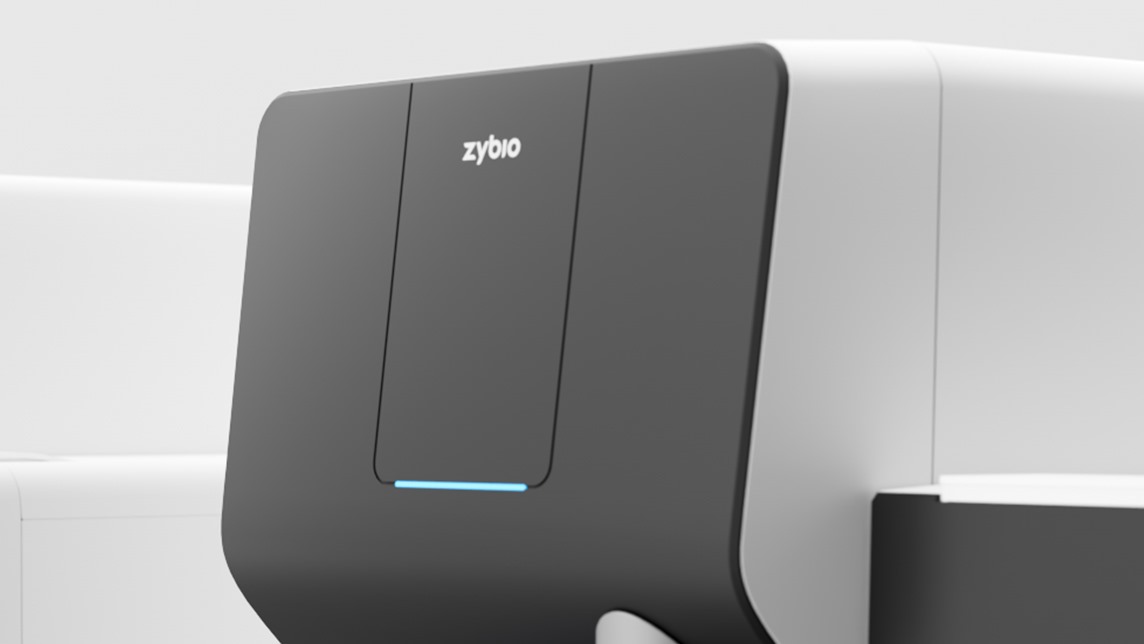

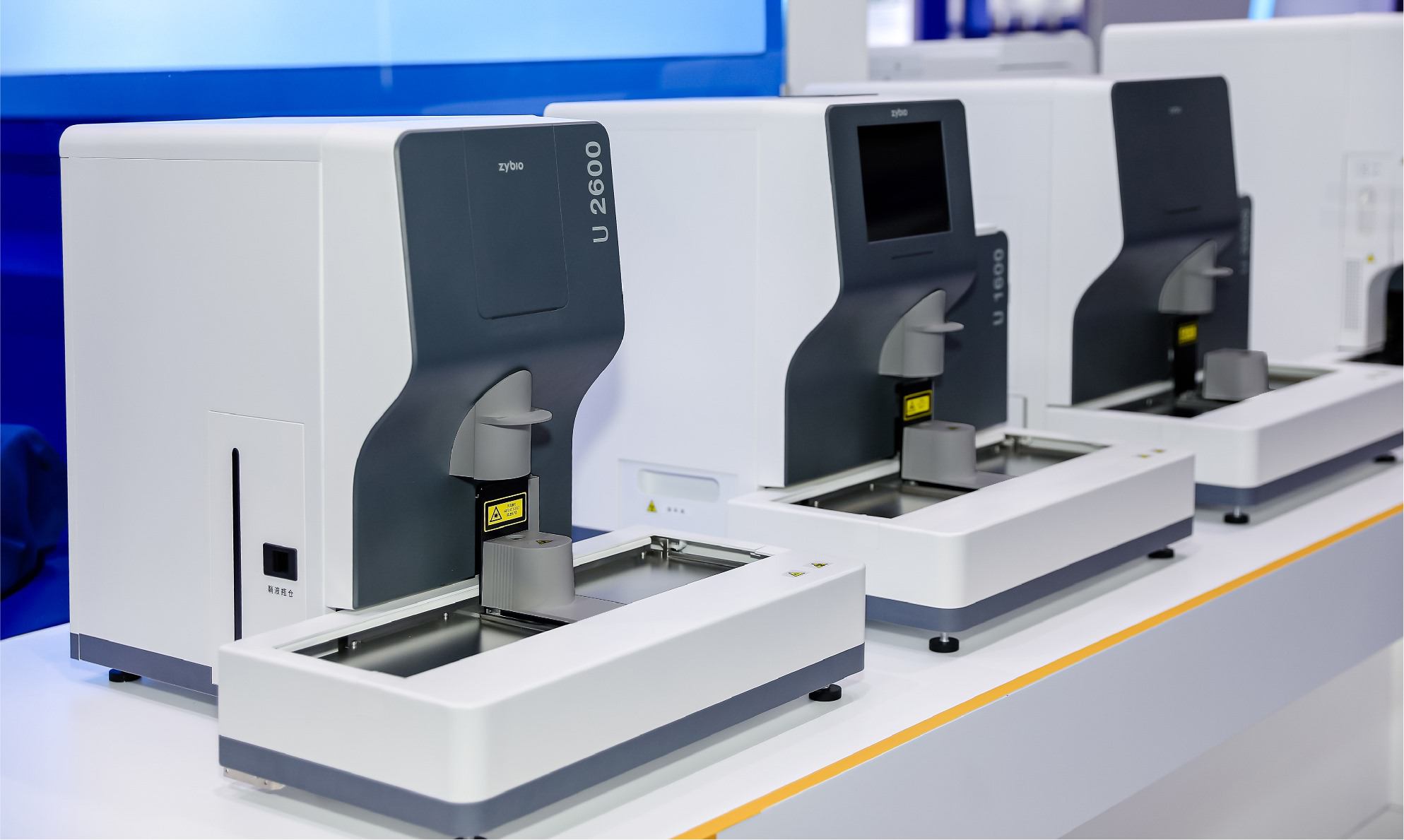

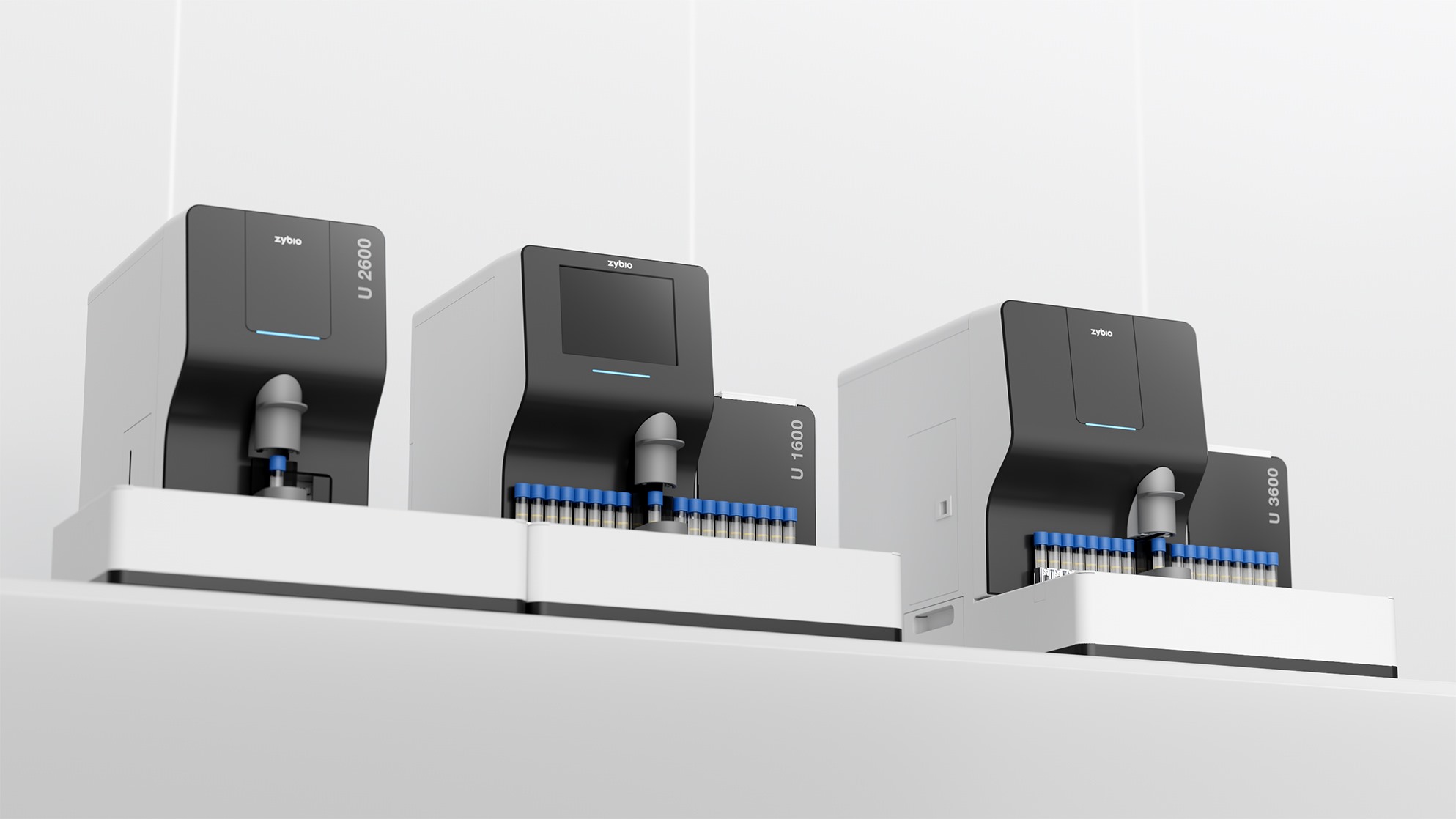

Thanks to the consistent look of the urinalysis devices, the
zybio brand achieves a higher recognition value.

The U-shaped joint on the front reduces the large
anthracite-coloured area, emphasizes the logo and integrates
the position of the indicator light.

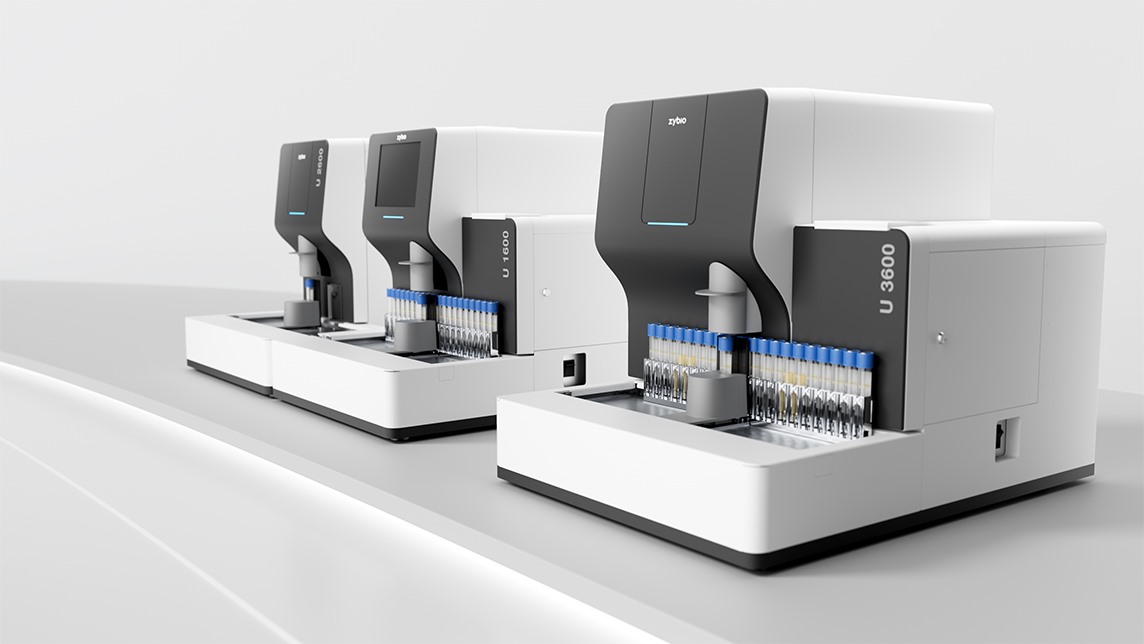

Modular Design
Perfect Switch Between Stand-Alone Mode and Multiline Mode

The modular structure of the sample tray allows the user to flexibly configure single machines into multi-line machines.
This effectively reduces mold and production costs and also reduces costs for the user.

Proposing a Bold and Innovative
Emergency Loading Method

The unique handle design and cleverly integrated anti-slip
texture allow for easy and comfortable handling.

The innovative up and down push-pull design forms an
independent closed emergency compartment.

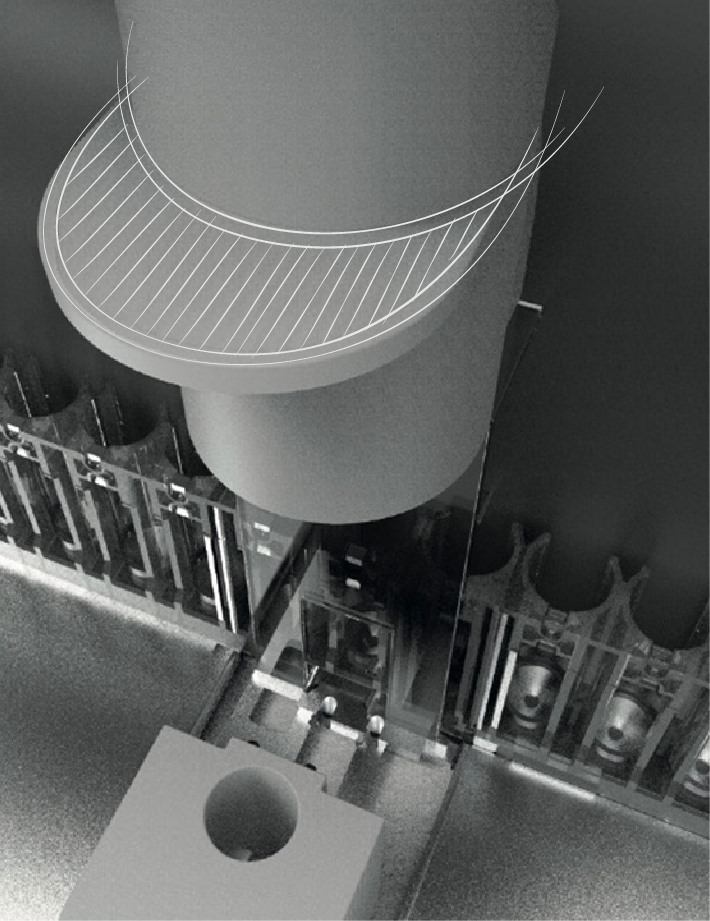

Thanks to the transparent design of the back, scanning
information is not an issue.

The grey design of the handle solution prevents traces from
being left behind after touching.

Innovation Journey
Discover the Best Shape

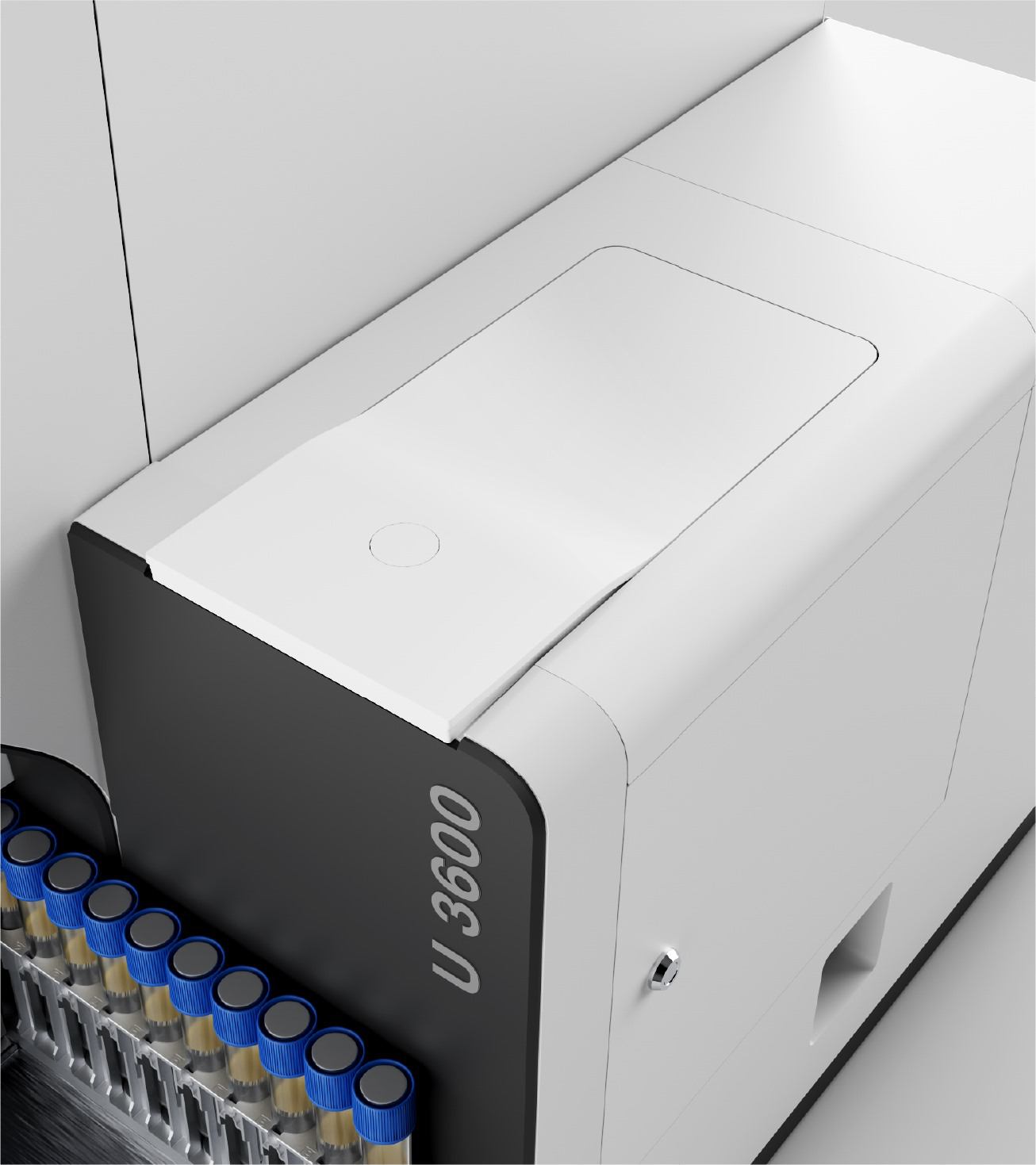

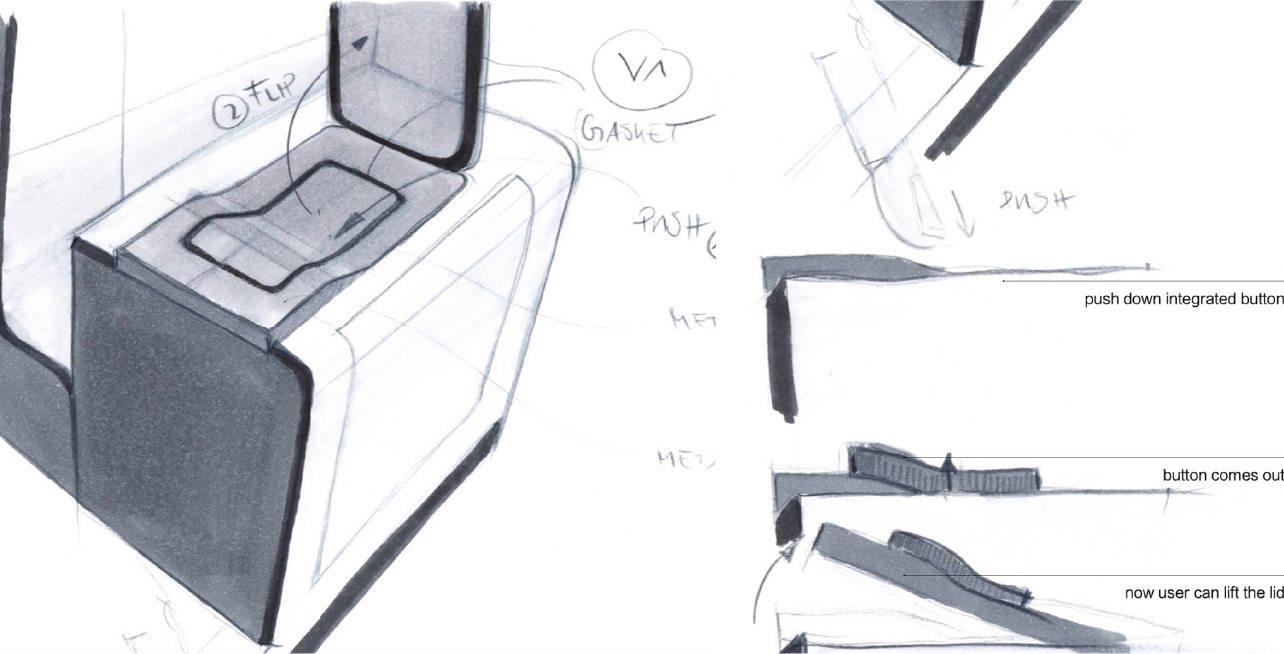

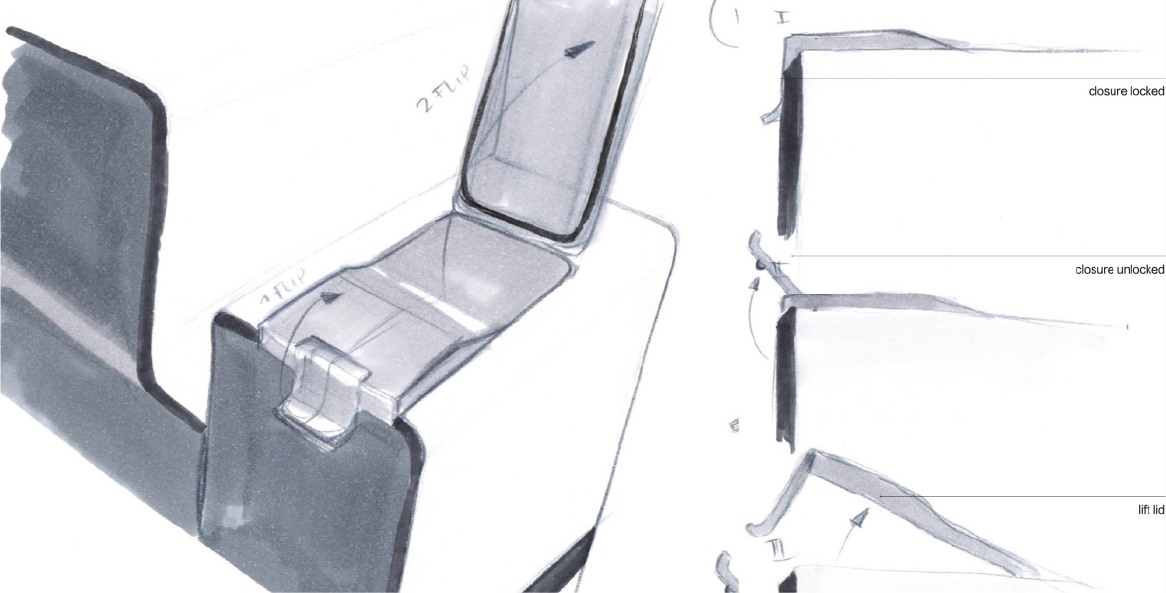

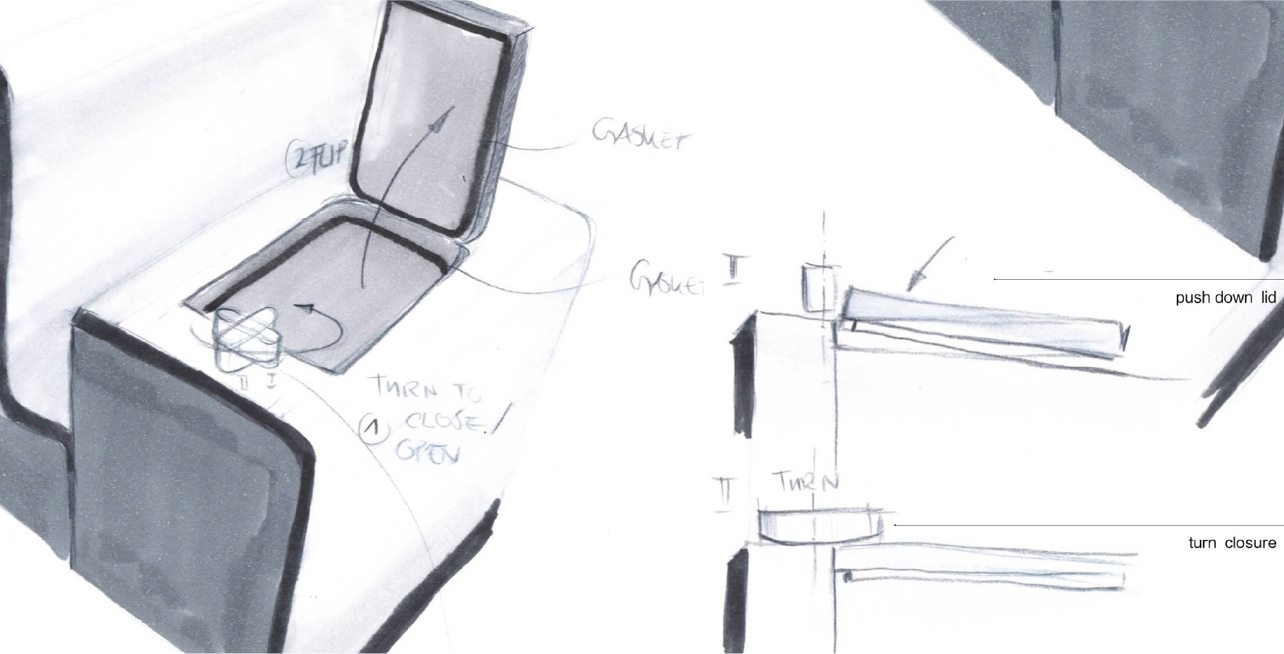

When designing the lid of the consumables compartment, yimumu tested different shapes. To achieve the ultimate details and perfection in terms of cost and manufacturing capabilities, yimumu communicates closely with its customers.

Ultimately, yimumu found the sweet spot, a perfect balance of design, functionality
and cost.

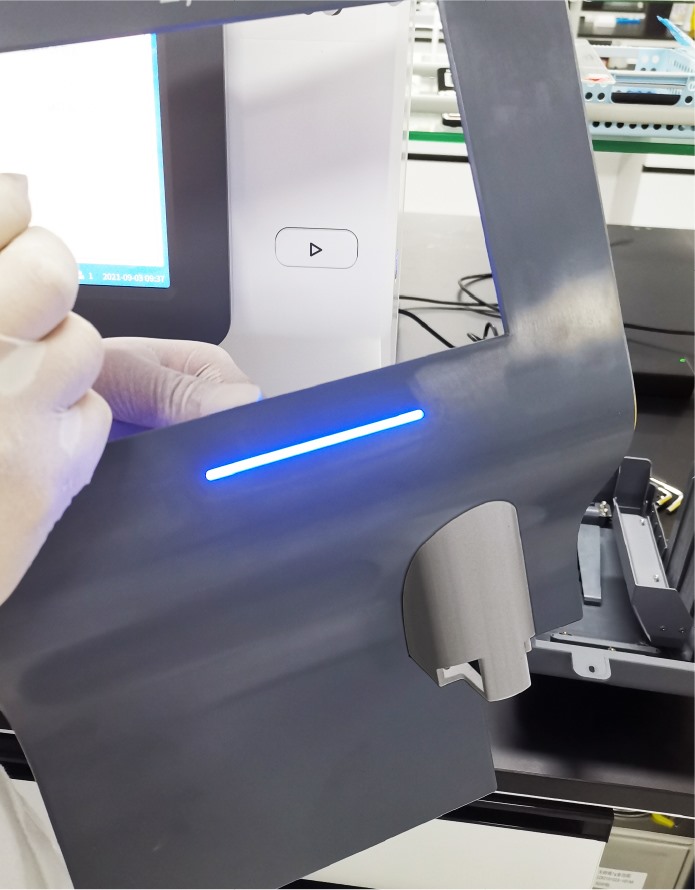

The Beauty of Details in the Design Process

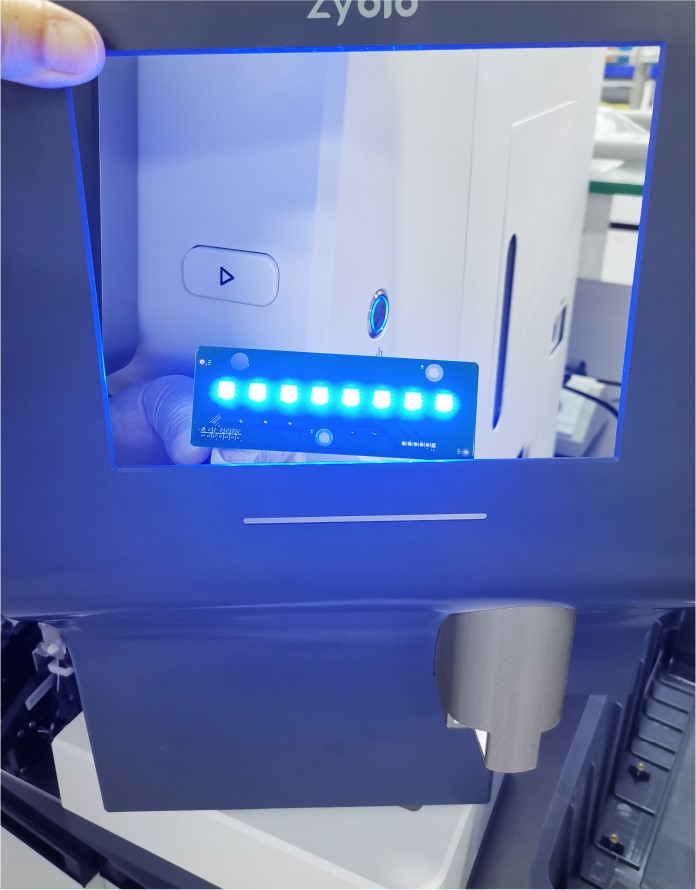

yimumu created variants of different sizes, dimensions and
positions of the indicator lights and then strictly controlled every
detail during implementation.
